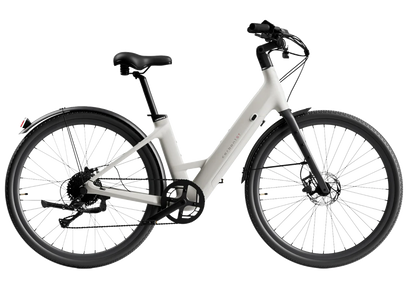

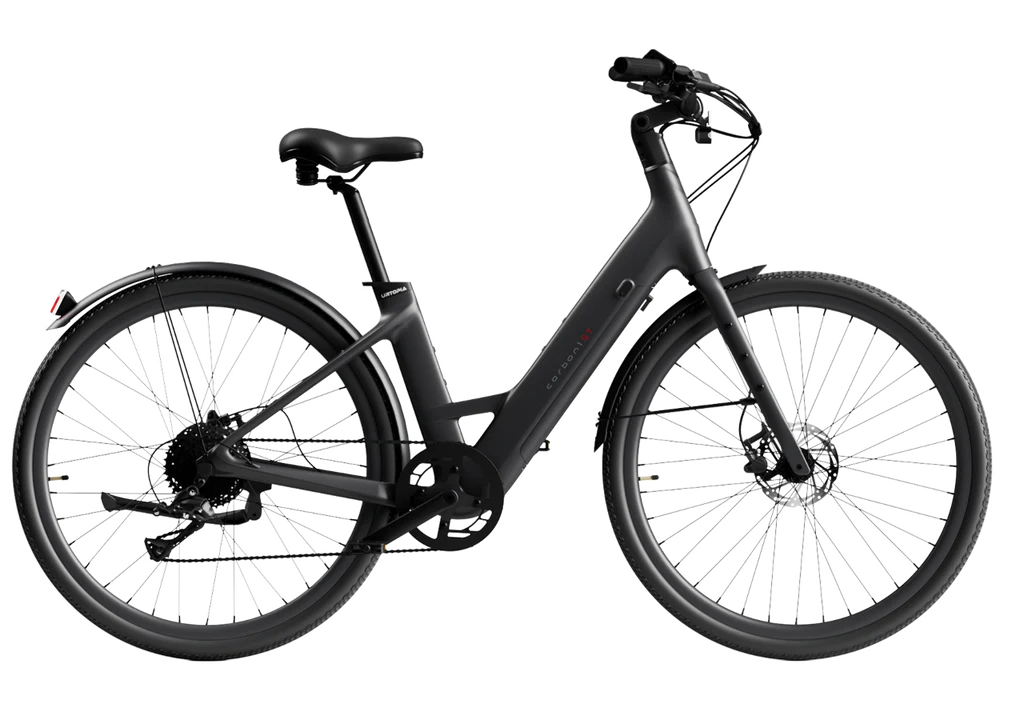

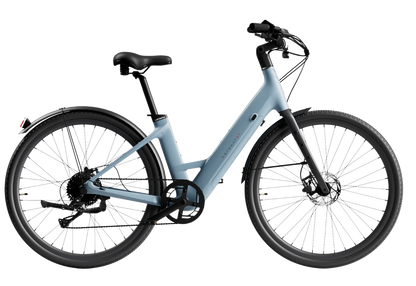

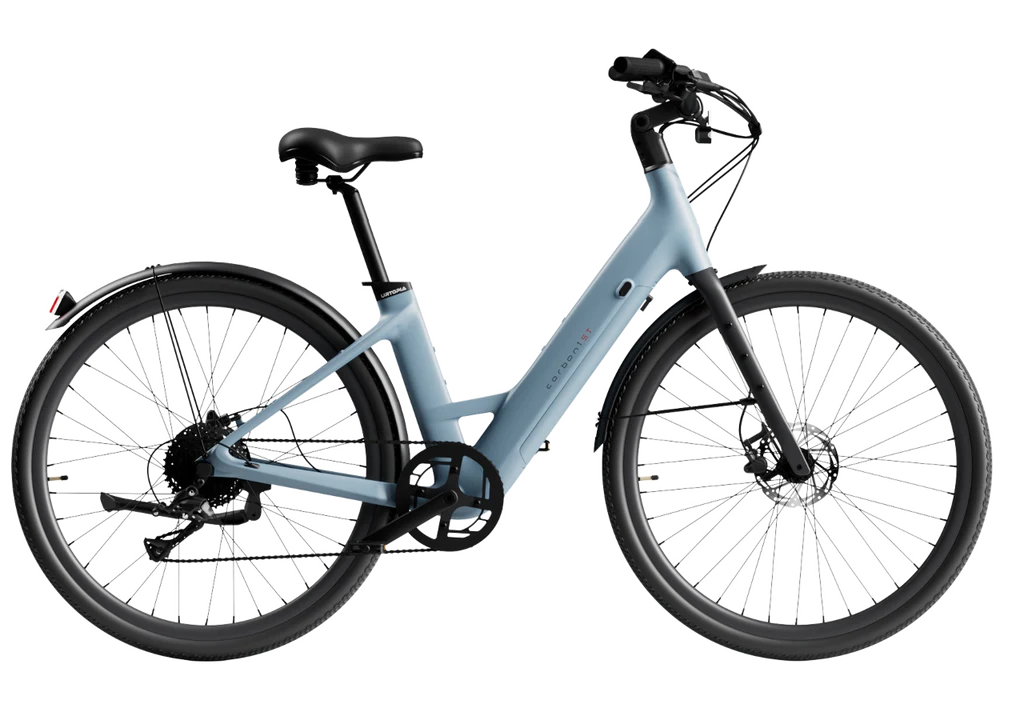

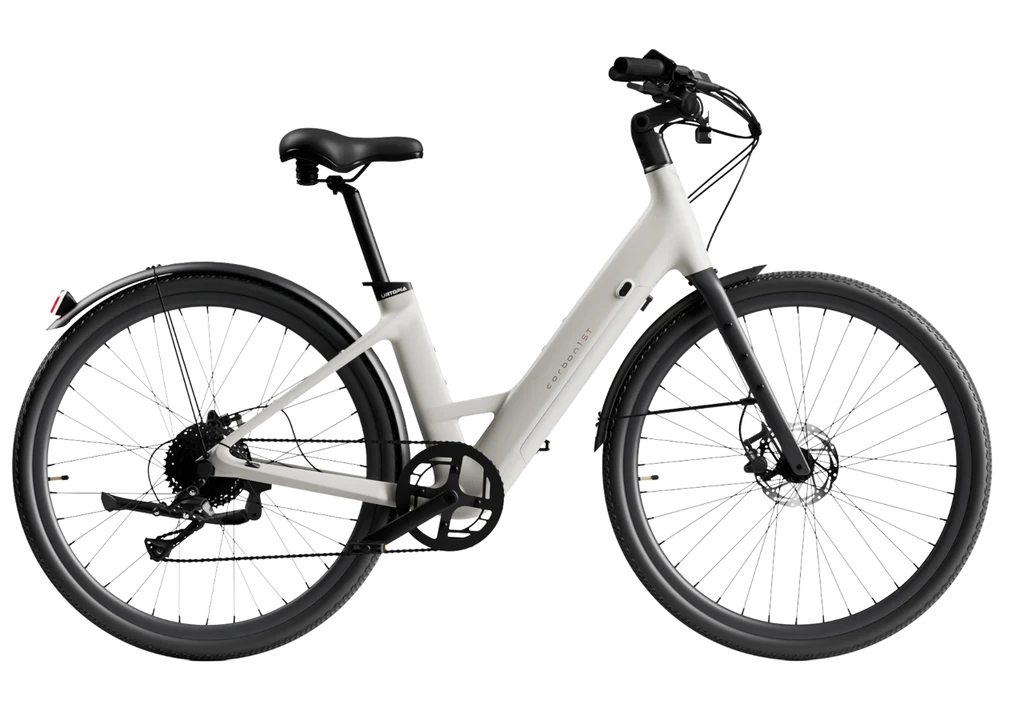

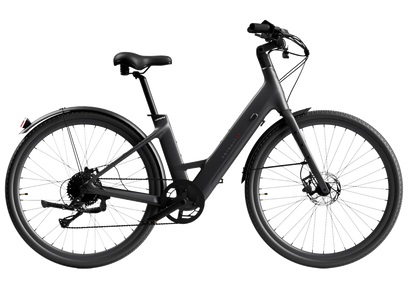

Urtopia Carbon 1 Step-Thru E-Bike
IN STORE PICKUP ONLY, CALL STORE FOR DETAILS.
One Size Fits Most
General Info
Model: Carbon Classic Step-Thru E-bike
Net Weight: 38 lbs w/o acc.
Material: Carbon fiber (frame, fork)
Range: Up to 75 miles
*The 75-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads.
Top Speed: 20mph by default, 25mph upon unlock
Total Weight Limit: 240 lbs
Rider Height: 5’1’’ - 6’1’’
Brakes: TEKTRO hydraulic disc brake with power cut-off sensor
Wheels: 700C (ISO 622mm BSD), 40C (45C max.) tires, puncture-proof tire
Ebike System
Motor: 750W (peak) rear hub, 60Nm

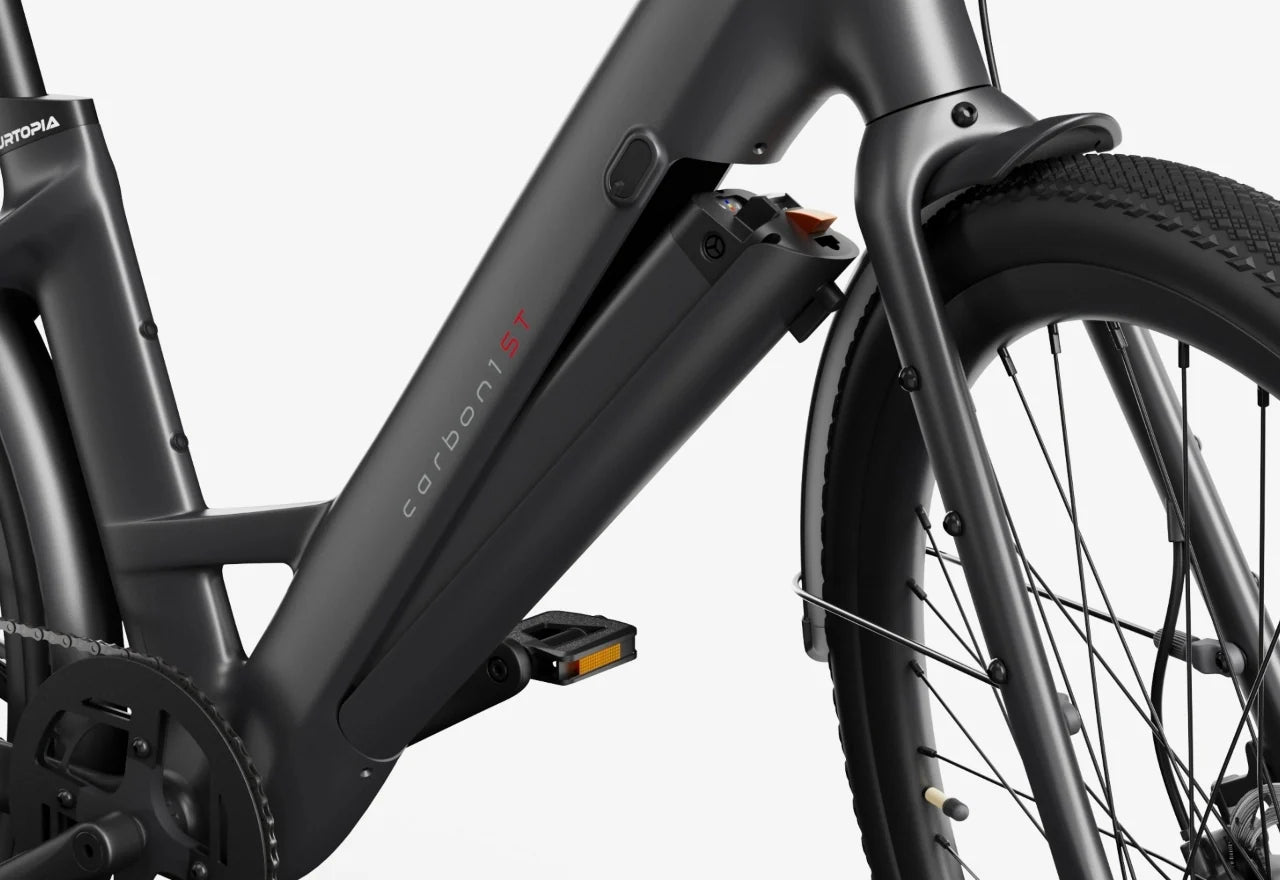

Battery: 352.8Wh Samsung Li-ion, certified to UL-2271, removable battery
Charger: 2.5H fast charger

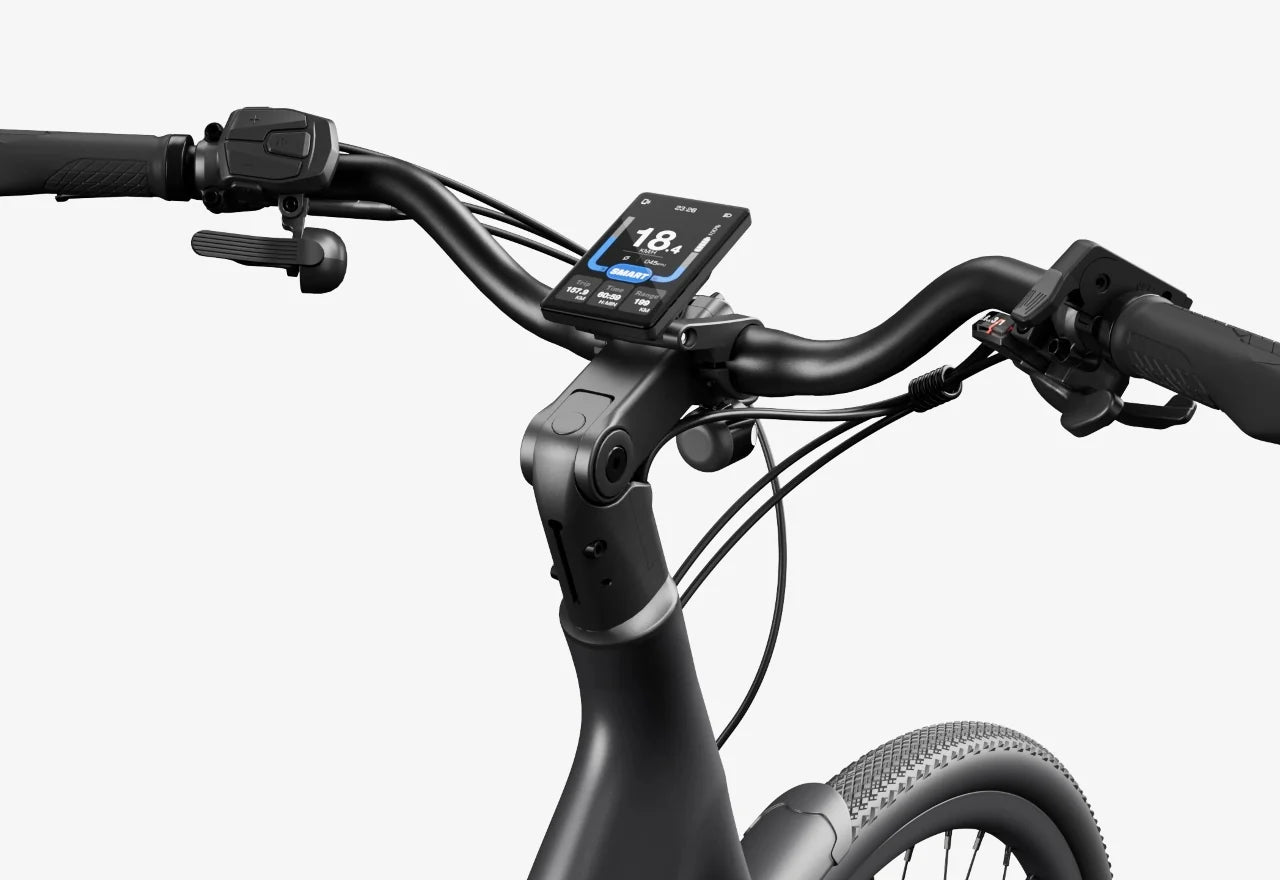

Display: 3.5'' Color LCD display
Lights: Front: External light, 30 Lux
Rear: External rear light (Not ARES lights)
Drivetrain
Crankset: Aluminum alloy, 170mm
Cassette: 11-40T, 8 Speed
Rear Derailleur: Shimano 8 speed
Shift Lever: 8 Speed Trigger
Pedals: 9/16" Alloy Platform
Cockpit
Grips: Durable ergonomic Grips, lockable
Seat Post: Aluminum Alloy, φ31.6mm, 300mm
