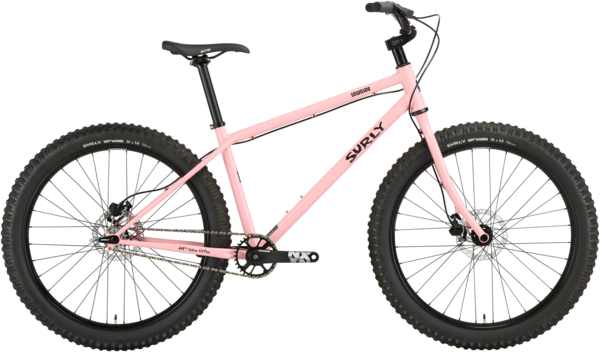

Surly Lowside Bike

The Lowside is the bike that gets you across town for a quick rip on singletrack, then over to the bar for a night out. It’s the bike you turn to when you’re not entirely sure what the night has in store. It’s the bike to grab when you want to have just much fun riding to the trail as you do from the trail itself. Singlespeeding is an integral part of Surly’s DNA, and the Lowside continues the tradition, by taking a simpler approach to trail riding.

- 100% Surly 4130 Chromoly frame, main triangle is double-butted; 1-1/8" threadless Chromoly fork
- Singlespeed “specific” (derailleur hanger but no Trip Guides)
- Dropper post routing
- Gnot-Boost rear spacing
- Front and rear thru-axle
- 26 x 3” or 27.5 x 2.8” tire clearance

Frame	Surly Lowside, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork	Surly Lowside, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rims	ALEX MD40 26"
Hubs	Front: Novatec 15x110mm, 32h Rear: Novatec 12x148mm, 32h
Spokes	14G
Tires	Surly Dirt Wizard 26x3" 60tpi
Bottom Bracket	SRAM Powerspline
Crankset	SRAM NX 32t
Cassette/Freewheel	SURLY SPLINED SINGLE SPEED COG 17t
Chain	KMC X10
Brakes	Tektro HD-M275 (Tektro HD-M276 on XS)
Rotors	Tektro 160/160, 6-Bolt
Brake Levers	Tektro HD-M275 (Tektro HD-M276 on XS)
Handlebars	Surly Sunrise
Tape/Grips	Velo Black Lock-On
Stem	Sunday Freeze Stem Top Load
Headset	Cane Creek
Seatpost	Promax SP-2019, 0 Offset
Saddle	WTB Volt
Pedals	Sold Separately
