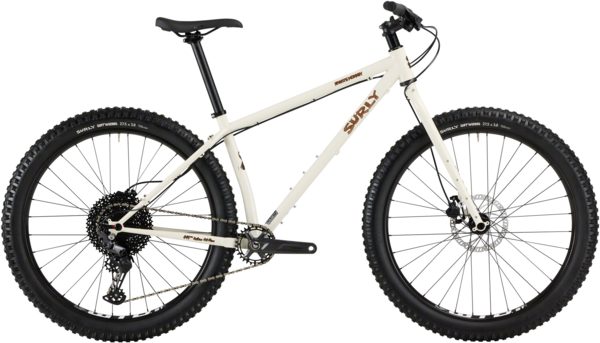

Surly Karate Monkey Rigid

The Karate Monkey features updated, progressive trail geometry, our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.

- 100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
- The tubeset uses the same trumpet tubes found on Instigator 2.0 frame
- Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
- Internal dropper seatpost routing with 30.9mm seat tube ID
- Clearance for 29 x 2.55 or 27.5 x 3 tires

Frame	Surly Karate Monkey, 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
Fork	Surly Karate Monkey, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rims	WTB ST i40 TCS 2.0 27.5"
Hubs	Front: Novatec 15x110mm, 32h Rear: Novatec 12x148mm, 32h
Spokes	14G Black
Tires	Surly Dirt Wizard 27.5 x 3", 60 tpi, Tubeless Ready
Bottom Bracket	Shimano MT501, BSA
Crankset	Shimano MT511, 30T
Shifters	Shimano Deore M6100
Rear Derailleur	Shimano Deore M6100 SGS
Cassette/Freewheel	SunRace CSMZ800, 11-51t, 12-spd
Chain	KMC X12 Anti-Rust
Brakes	Tektro HD-M275/HD-M276, 2 piston
Rotors	Tektro 180/160, 6-Bolt
Brake Levers	Tektro HD-M275/HD-M276
Handlebars	Salsa Rustler
Tape/Grips	Velo Black
Stem	Promax DA-296, 31.8mm
Headset	Cane Creek
Seatpost	Promax SP-2019, 30.9mm
Saddle	WTB Volt Medium
Pedals	Sold Separately
