Surly Karate Monkey Frameset - 27.5" Steel Hi-Viz Black X-Large

Name: Surly Karate Monkey Frameset - 27.5" Steel Hi-Viz Black X-Large
Brand: Surly
SKU: FM0319
Price: 999.0 USD
Availability: OutOfStock

$999.00 USD

$999.00 USD ~~$999.00 USD~~

Shipping calculated at checkout.

Out of stock

Sold out

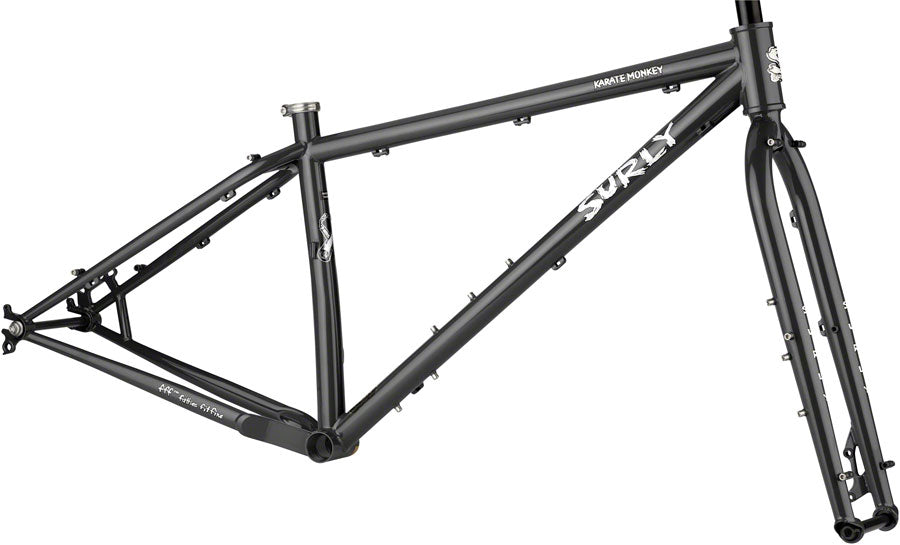

Surly Karate Monkey Frameset - 27.5" Steel Hi-Viz Black X-Large. The Karate Monkey features updated progressive trail geometry our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors with multiple drivetrain and wheel size configurations.

100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube

The tubeset uses the same trumpet tubes found on Instigator 2.0 frame

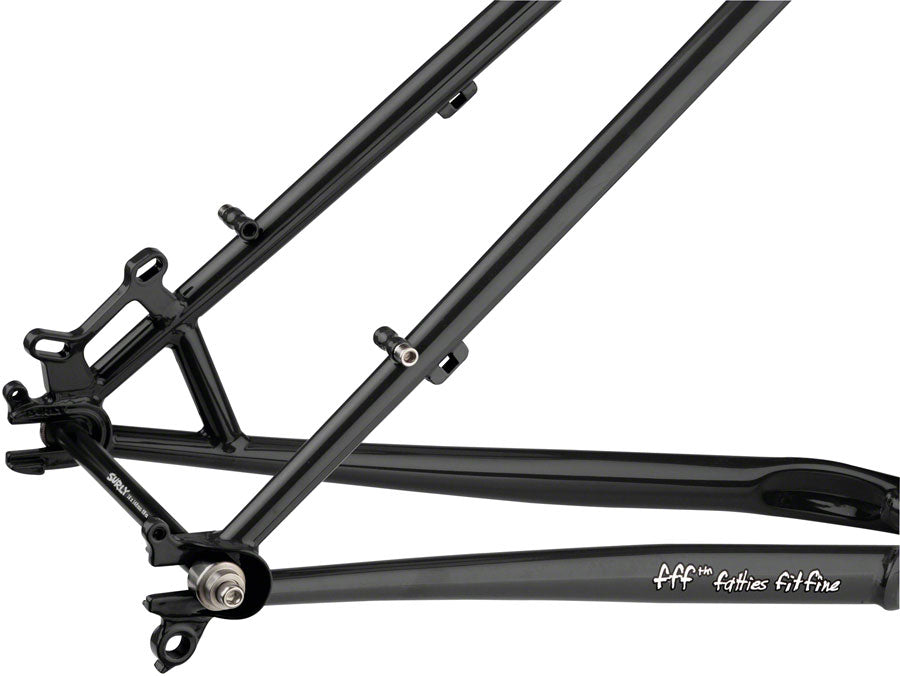

Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142 148 12mm thru as well as 135mm w/ 10/12 washer

Internal dropper seatpost routing with 30.9mm seat tube ID

Clearance for 29 x 2.55 or 27.5 x 3 tires

TECH SPECS

Platform	Karate Monkey
Mfg Size	X-Large
TT (Effective)	660
Frame Type	Rigid
Fork Type	Rigid
Wheel Size	27.5+
Wheel Size	29"
Frame Material	Steel
Fork Material	Steel
Color	Hi-Viz Black
Defined Color	Black
Front Axle	15mm Thru x 110mm
Rear Axle	12mm Thru x 148mm
Brake Type	Disc

Product Spec Table

Platform	Karate Monkey
Mfg Size	X-Large
TT (Effective)	660
Frame Type	Rigid
Fork Type	Rigid
Wheel Size	27.5+
Wheel Size	29"
Frame Material	Steel
Fork Material	Steel
Color	Hi-Viz Black
Defined Color	Black
Front Axle	15mm Thru x 110mm
Rear Axle	12mm Thru x 148mm
Brake Type	Disc
