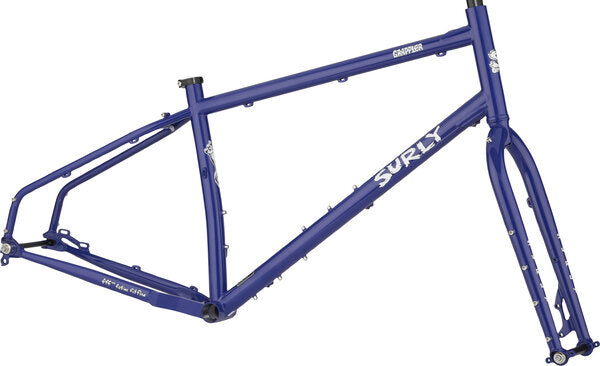

Surly Grappler 1.2 Frameset

The Grappler is Surly's dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it's lively and responsive on single-track, double-track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, captured thru-axles front and rear provide ideal stiffness and handling. Built around 27.5" wheels and compatible with internally geared hubs and single-speed setups, Surly's tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.

- 100% Surly Chromoly steel frame and fork, featuring Surly's proprietary 'Natch tubing, double-butted main triangle, 1-1/8" headtube, non-suspension corrected.
- Horizontal-slotted dropout, Surly Gnot-Boost spacing.
- Seat stay-mounted bottle bosses on all sizes except XS, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing.
- E.D. coated frame for increased life expectancy.
- 27.5 x 2.8" tire clearance (with or without fenders).

Frame	100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork	100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Headset	Cane Creek 40
Seatpost	TransX YSP15, 30.9, 100mm travel
Pedals	Sold separately
