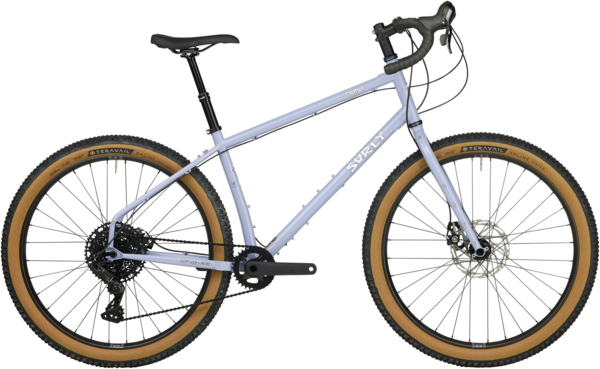

The Grappler is Surly’s dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it’s lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, thru-axles front and rear provide ideal stiffness and handling. Built around 27.5” wheels and compatible with internally geared hub and single-speed setups, Surly’s tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.
- 100% Surly Chromoly steel frame and fork, featuring Surly’s proprietary ’Natch tubing, double-butted main triangle, 1-1/8” headtube, non-suspension corrected
- Horizontal-slotted dropout, Surly Gnot-Boost spacing
- Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing
- E.D. coated frame for increased life expectancy
- 27.5 x 2.8” tire clearance (with or without fenders)
| Frame |
100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
| Fork |
Surly Dinner Fork 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated |
| Rims |
WTB ST i40 TCS |
| Hubs |
Front: Novatec 15x110mm, 32h Rear: Novatec 12x148mm, 32h |
| Tires |
Teravail Ehline, 27.5 x 2.5", 60tpi |
| Bottom Bracket |
Samox BSA |
| Crankset |
microSHIFT 11-48t |
| Shifters |
microSHIFT SB-M100A, AdventX Dual Control Levers |
| Front Derailleur |
High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing |
| Rear Derailleur |
microSHIFT M6205 |
| Cassette/Freewheel |
microSHIFT 11-48t |
| Chain |
KMC X10 Black |
| Brakes |
Disc - 51mm I.S. (203mm max rotor) |
| Rotors |
Tektro 180/160 |
| Brake Levers |
microSHIFT AdventX Dual Control Levers |
| Handlebars |
Salsa Cowchipper 31.8mm |
| Tape/Grips |
Cork, Black |
| Stem |
Promax DA-296, 31.8mm |
| Headset |
Cane Creek 40 |
| Seatpost |
TransX YSP15 Dropper, 360mm, 100mm trave |
| Saddle |
WTB Volt 142 |
