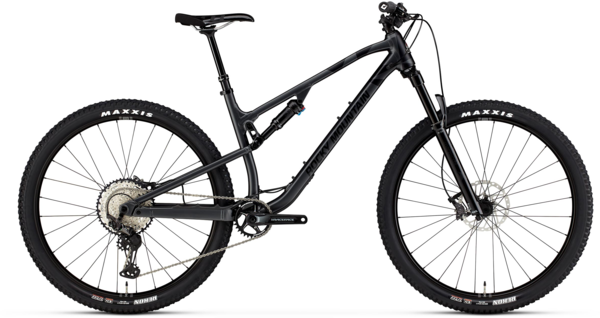

Purpose-built to hit the precise sweet spot between lightweight cross-country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
Wheel Sizes:
Size X-Small: 27.5-inch
Size Small - X-Large: 29-inch
| Frame |
FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. FORM™ Alloy Rear Triangle |
| Fork |
Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset |
| Rear Shock |
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ |
| Rims |
WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
| Hubs |
Front Hub: Rocky Mountain SL Sealed Boost 15mmRear Hub: Shimano SLX Boost 148mm | 28H |
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Tires |
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready |
| Bottom Bracket |
Shimano SM-BBMT500 |
| Crankset |
Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Shifters |
Shimano SLX |
| Rear Derailleur |
Shimano XT |
| Cassette/Freewheel |
Shimano SLX 10-51T |
| Chain |
Shimano M7100 |
| Brakes |
Shimano XT 2 Piston | Resin Pads |
| Handlebars |
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips |
ODI Elite Pro Lock On |
| Stem |
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm |
| Headset |
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost |
X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle |
WTB Volt Race 142 |
