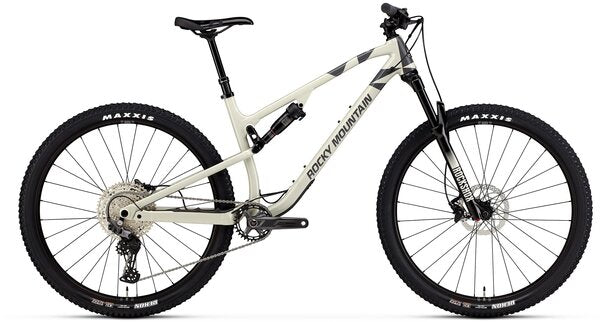

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more.
| Frame |
FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. FORM™ Alloy Rear Triangle |
| Fork |
RockShox Recon Gold 130mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Headset |
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock |
RockShox Deluxe Select+ | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |
| Rims/Wheels |
WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
| Hubs |
Front: Shimano TC500 | 15x110m | 28H Rear: Shimano TC500 Boost 148mm | 28H |
| Spokes |
2.0 Stainless |
| Tires |
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready |
| Crankset |
Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Bottom Bracket |
Shimano SM-BBMT500 |
| Chain |
Shimano M6100 |
| Rear Derailleur |
Shimano Deore 12spd |
| Rear Cogs |
Shimano Deore 10-51T 12spd |
| Shifters |
Shimano Deore 12spd |
| Handlebars |
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips |
Rocky Mountain Lock On Light |
| Stem |
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm |
| Brakes |
Shimano MT4100 2 Piston | Resin Pads |
| Saddle |
WTB Volt 142 |
| Seat Post |
X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Color(s) |
Beige/Gray |
| Sizes |
XS, Small, Medium, Large, XL |
