With raucous off-road ability and a Sherpa-like carrying capacity, it’s ready for expeditions in the high mountains.

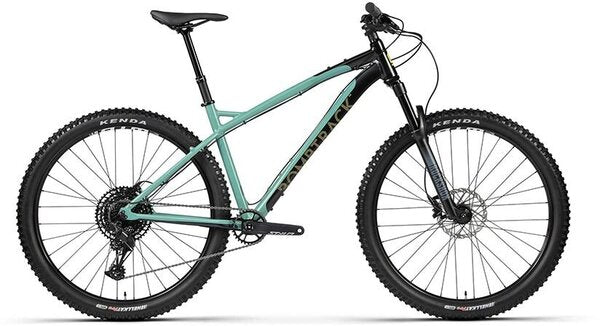

The Cale AL is the aluminum alternative to its steely Cale partner, ready to conquer the mountains as sold. Not scrimping on off-road potential nor cargo-carrying capability, this bike can handle your local trail center or the high peaks in its stride with ease. Fast-rolling 29" wheels plus the chance of using oversized 27.5"+ tires give you the option to experiment with home-based modifications. As if these features were not already enough to hit the trails, the bike comes with a dropper post and suspension fork, avec plaisir.
| Frame |
6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |
| Fork |
ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8" |
| Rims |
WTB ST i29 double wall, TCS 2.0, 32h |
| Hubs |
Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt discRear: BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc |
| Axles |
15 x 110 mm / 12 x 148 mm |
| Tires |
KENDA HELLCAT PRO ATC 29" x 2.4" TLR, tubeless ready |
| Bottom Bracket |
SRAM DUB BSA 73 mm |
| Crankset |
TRUVATIV STYLO 6K aluminum crank, Boost DUB |
| Chainrings |
SRAM EAGLE X-SYNC 2, narrow-wide, 30T |
| Shifters |
SRAM SX-EAGLE 12-speed trigger shifter |
| Rear Derailleur |
SRAM SX EAGLE, clutch, long cage |
| Cassette/Freewheel |
SRAM PG-1210 EAGLE 12-speed, 11 - 50T |
| Chain |
SRAM NX EAGLE chain, 1/2" x 11/128", 118L |
| Brakes |
SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors |
| Brake Levers |
SRAM LEVEL hydraulic |
| Handlebars |
BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter |
| Tape/Grips |
BOMBTRACK RETURN 135 mm grips |
| Stem |
BOMBTRACK DRIFT aluminum stem, 35 mm clamping diameter |
| Headset |
Sealed integrated headset, 1.1/2" - 1.1/8" |
| Seatpost |
KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length |
| Saddle |
BOMBTRACK FUZZ |
