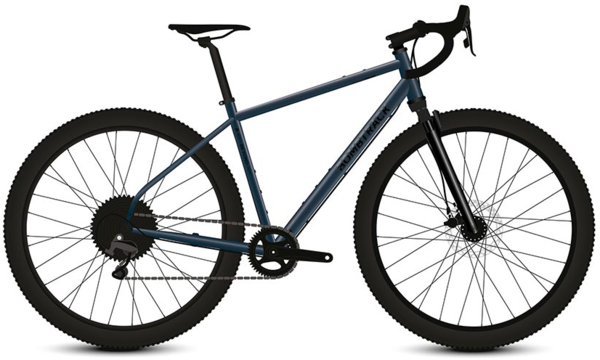

Bombtrack Bicycle Company Beyond Sus

A steel frame, suspension fork and mountain bike width tires. Plus all the carrying options you'll ever need.

Thanks to the RockShox Rudy suspension fork, no surface will shake, rattle, or roll you while riding the Beyond SUS. The frame features top tube mounts, triple cage mounts on the downtube and even underneath, so you can fit your cargo in your desired configuration. The Sram Apex 1x11 groupset provides the power, thanks to a generous 11 – 42T cassette. Tubeless-ready WTB ST i23 rims with WTB Venture Light tyres roll fast and smooth, while Bombtrack Tau 12mm through-axle hubs means you will tackle trail-side repairs in a flash.

Frame	4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork	ROCKSHOX RUDY suspension fork, 1.1/2" - 1.1/8", 40 mm travel
Rims	Front: WTB ST i23 double wall, TCS 2.0, 32h Rear: WTB ST i23 double wall, TCS 2.0, 32h
Hubs	Front: BOMBTRACK TAU sealed hub, 6-bolt disc Rear: BOMBTRACK TAU sealed hub, 11-speed, 6-bolt disc
Axles	12 x 100 mm / 12 x 142 mm
Tires	Front: WTB VENTURE TCS LIGHT / FAST ROLLING XS - S 650B x 47C / M - XL 700C x 50C, tubeless ready Rear: WTB VENTURE TCS LIGHT / FAST ROLLING XS - S 650B x 47C / M - XL 700C x 50C, tubeless ready
Bottom Bracket	BSA sealed BB, external cups
Crankset	BOMBTRACK AMES forged aluminium crank, 24 mm spindle
Chainrings	Steel, narrow-wide, 36 T
Shifters	SRAM Apex double tap 1 x 11
Rear Derailleur	SRAM APEX 1, clutch, long cage
Cassette/Freewheel	SRAM PG-1130 11-speed, 11 - 42 T
Brakes	TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors
Brake Levers	SRAM Apex double tap mechanic
Handlebars	SEIDO TACKLE gravel bar, 31.8 mm, 25° flare
Stem	BOMBTRACK TRAMP forged aluminium stem, 3°
Headset	Sealed external aheadset, 1.1/2'' - 1.1/8''
Seat clamp	BOMBTRACK PRIME 29.8 mm
Seatpost	SEIDO BEECH 27.2 mm x 415 mm
Saddle	BOMBTRACK FUZZ
ASTM riding condition	2
Maximum rider weight	140 kg incl. luggage
Weight frameset	2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / TBA g fork (300 mm steerer, incl. TA)
Weight	12.25 kg (size M)
