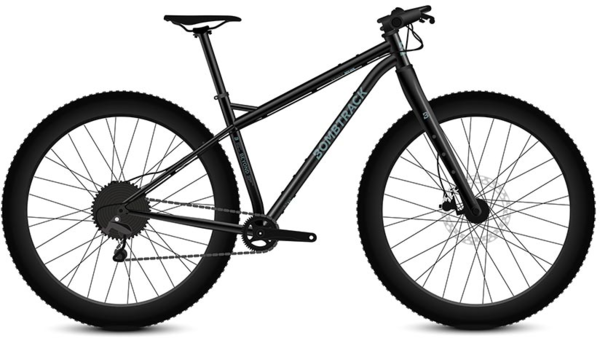

For rides that go the extra mile, you cannot compromise on weight – nor comfort. The Beyond+ ADV packs 29'' tires, free-spinning gearing, and a range of handling positions thanks to the vast sweep of a Jones H-Bar handlebar. Low profile geometry provides standover for technical riding while also improving handling when ridden loaded. The double-butted steel frame, accompanied by a tapered BPC carbon fork, cuts weight without losing comfort or control. Mounting points allow an array of cargo-carrying opportunities; the bike rounded off with a 10 – 52T cassette and Magura Trail Sport brakes mean only the edges of a map will hold you back.
It's a bike you can pack up your life on and go across the Siberia or the Rockies on or you can simply do what we did and load up for a cheeky midweek overnighter on the South Downs and enjoy the fresh air. It will handle either with ease and will put a smile on your face when those wheels just keep rolling over everything.
| Frame |
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell* |
| Fork |
BOMBTRACK BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Rims |
Front: WTB ST i35 double wall, TCS 2.0, 32h Rear: WTB ST i35 double wall, TCS 2.0, 32h |
| Hubs |
Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt disc Rear: BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc |
| Axles |
15 x 110 mm / 12 x 148 mm |
| Tires |
Front: WTB RANGER TCS TOUGH / FAST ROLLING 27.5'' x 2.8'', tubeless ready Rear: WTB RANGER TCS TOUGH / FAST ROLLING 27.5'' x 2.8'', tubeless ready |
| Bottom Bracket |
SRAM DUB BSA 73 mm |
| Crankset |
TRUVATIV STYLO 6K aluminium crank, Boost DUB |
| Chainrings |
SRAM EAGLE X-SYNC 2, narrow-wide, 30 T |
| Shifters |
SRAM SX-EAGLE 12-speed trigger shifter |
| Rear Derailleur |
SRAM SX EAGLE, clutch, long cage |
| Cassette/Freewheel |
SRAM PG-1210 EAGLE 12-speed, 11 - 50 T |
| Chain |
SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L |
| Brakes |
SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors |
| Brake Levers |
SRAM LEVEL hydraulic |
| Handlebars |
BOMBTRACK TRAIL flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise |
| Tape/Grips |
BOMBTRACK SCROLL grips |
| Stem |
BOMBTRACK TRAMP forged aluminium stem, 3° |
| Headset |
Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8'' |
| Seat clamp |
BOMBTRACK ORIGIN forged aluminium seat clamp, 34.9 mm |
| Seatpost |
BOMBTRACK YEW aluminium seatpost, 30.9 mm x 400 mm |
| Saddle |
BOMBTRACK FUZZ |
| ASTM riding condition |
3 |
| Maximum rider weight |
165 kg incl. luggage |
| Weight frameset |
2910 g frame (size M, incl. TA, hanger) |
| Weight |
14.4 kg (size M) |
