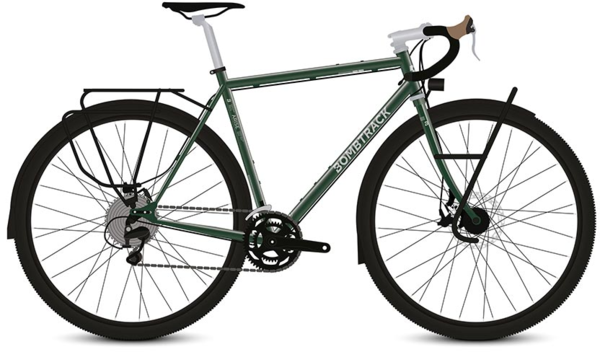

If the wilderness beckons, the Arise Tour won’t stand in your way with its twin Tubus racks, mudguards and Supernova dynamo lights. Regardless of load, the Ames sub-compact 30 / 46T crankset and generous 11 – 42T cassette mean you’ll always have enough gears to tackle those steeper gradients. For a modern touch, flared bars allow for added packing space as well as sturdier handling while riding on the drops. For touring purists, bar-end shifters give you peace of mind over more complicated combination shifters.
The distance-orientated Arise Tour's racks, mudguards, and dynamo lights help to escape far beyond the limits of the city.
| Frame |
4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Light |
SUPERNOVA E3 PURE 3 front, E3 TAIL LIGHT 2 rear |
| Fork |
4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Rims |
Front: WTB ST i19 double wall, TCS 2.0, 32h Rear: WTB ST i19 double wall, TCS 2.0, 32h |
| Hubs |
Front: KT dynamo hub, 6-bolt disc Rear: BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Rack |
TUBUS TARA front, LOGO EVO rear |
| Axles |
12 x 100 mm / 12 x 142 mm |
| Tires |
Front: XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622 Rear: XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622 |
| Bottom Bracket |
BSA sealed BB, external cups |
| Crankset |
BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| Chainrings |
Steel, subcompact, 46 / 30 T |
| Shifters |
MICROSHIFT BS-M10 bar end shifter 2 x 10 |
| Rear Derailleur |
MICROSHIFT RD-M62L, long cage |
| Front derailleur |
MICROSHIFT FD-R552-B |
| Cassette/Freewheel |
MICROSHIFT CS-H103 10-speed, 11 - 42 T |
| Chain |
KMC X10 chain, 1/2'' x 11/128'', 114L |
| Brakes |
TRP SPYRE C post mount mechanic disc brakes with 160 mm rotors |
| Brake Levers |
TEKTRO RL-340 brake levers |
| Handlebars |
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Tape/Grips |
BOMBTRACK ESCAPE bar tape |
| Stem |
BOMBTRACK ROAM forged aluminium stem, -7° |
| Headset |
NECO H282 sealed external aheadset, 1.1/8'' |
| Seat clamp |
BOMBTRACK ORIGIN 29.8 mm |
| Seatpost |
BOMBTRACK BEECH 27.2 mm x 315 mm |
| Saddle |
BOMBTRACK FUZZ |
| Fender |
BOMBTRACK PIPE plastic fender, 50 mm |
| ASTM riding condition |
2 |
| Maximum rider weight |
130 kg incl. luggage |
| Weight frameset |
2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Weight |
14.7 kg (size M) |
