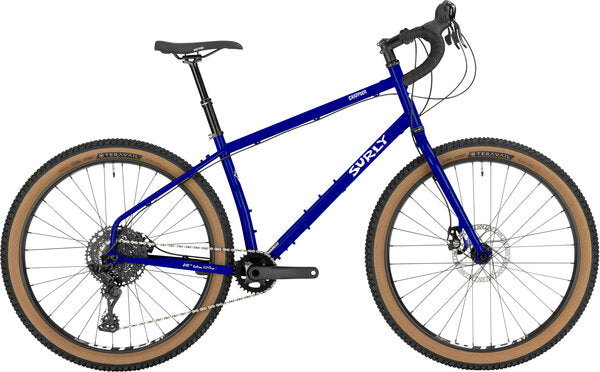

The Grappler is Surly's dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it's lively and responsive on single-track, double-track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, captured thru-axles front and rear provide ideal stiffness and handling. Built around 27.5" wheels and compatible with internally geared hubs and single-speed setups, Surly's tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.
- 100% Surly Chromoly steel frame and fork, featuring Surly's proprietary 'Natch tubing, double-butted main triangle, 1-1/8" headtube, non-suspension corrected.
- Horizontal-slotted dropout, Surly Gnot-Boost spacing.
- Seat stay-mounted bottle bosses on all sizes except XS, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing.
- E.D. coated frame for increased life expectancy.
- 27.5 x 2.8" tire clearance (with or without fenders).
| Frame |
100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
| Fork |
100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated |
| Rims |
WTB ST i40 TCS |
| Hubs |
Front: Novatec 15x110mm, 32hRear: Novatec 12x148mm, 32h |
| Tires |
Teravail Ehline, 27.5 x 2.5", 60tpi |
| Bottom Bracket |
Samox BSA 24 |
| Crankset |
Samox 2PCS Boost 32T |
| Shifters |
Microshift SB-M100, AdventX Dual Control Levers |
| Rear Derailleur |
Microshift M6205 |
| Cassette/Freewheel |
Microshift 11-48T |
| Chain |
KMC X10 Econo Black or NP/BLK |
| Brakes |
Tektro Mira MD-C400 |
| Handlebars |
Salsa Cowchipper 31.8 |
| Tape/Grips |
Cork Black |
| Stem |
Promax DA-296, 31.8 or Kalloy AS-007 |
| Headset |
Cane Creek 40 |
| Seatpost |
TransX YSP15, 30.9, 100mm travel |
| Saddle |
WTB Volt 142 |
| Pedals |
Sold separately |
