Made to cross countries and continents via all kinds of roads and trackways...

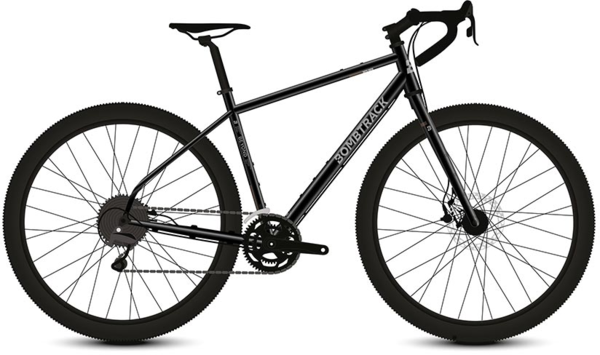

The Beyond 1 serves as the perfect first bike for fledgling adventurists. With tires as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
| Frame |
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
| Fork |
4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Rims |
Front: WTB ST i23 double wall, TCS 2.0, 32h Rear: WTB ST i23 double wall, TCS 2.0, 32h |
| Hubs |
Front: BOMBTRACK GRAD sealed hub, 6-bolt disc Rear: BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Axles |
15 x 100 mm / 12 x 142 mm |
| Tires |
Front: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready Rear: WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Bottom Bracket |
BSA sealed BB, external cups |
| Crankset |
BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| Chainrings |
Aluminium / Steel, 40 / 28 T |
| Shifters |
SRAM Apex double tap 2 x 10 |
| Rear Derailleur |
SRAM GX, short cage |
| Front derailleur |
Microshift FD-M612-B |
| Cassette/Freewheel |
SRAM PG-1020 10-speed, 11 - 36 T |
| Chain |
KMC X10 chain, 1/2'' x 11/128'', 114L |
| Brakes |
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |
| Brake Levers |
SRAM Apex double tap mechanic |
| Handlebars |
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
| Tape/Grips |
BOMBTRACK COMMAND bar tape |
| Stem |
BOMBTRACK WANDER forged aluminium stem, +17° |
| Headset |
Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Seat clamp |
BOMBTRACK ORIGIN 29.8 mm |
| Seatpost |
BOMBTRACK BEECH 27.2 mm x 415 mm |
| Saddle |
BOMBTRACK FUZZ |
| ASTM riding condition |
2 |
| Maximum rider weight |
140 kg incl. luggage |
| Weight frameset |
2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Weight |
12.9 kg (size M) |
